Meltblown Spunbond Composite Nonwoven Fabric Machine SMS SMMS Ssms Ssmms Meltblown Fabric Production Line
Non-woven Machinery Application
Hospital and protective equipment: surgical mask, surgical curtain, surgical mask, disposable clothing, surgical curtain, shoe covers, etc. Combined with other types of non-woven fabrics
Sanitary materials: baby diapers, adult incontinence pads, female hygiene pads, other cleaning applications.
Technical engineering: civil engineering, construction engineering, agricultural field, automobile field, etc.
Packaging products: shopping bags, rice bags, tea bags, clothing packaging, etc.
Home products: spring wrapped cloth, bedding, seat supplies, etc.
Paper composite materials and other work protection, protective clothing, gas masks, etc
1 SSMMS SMMS SMS DATA SHEET
| Production line parameters(m) | Weight ( g / m2) | Max speed ( m / min ) | Production Capacity ( t / y ) |
| 2.4 | 8 -150 | 600 | 10000 |
| 3.2 | 13000 |
| 4.2 | 16500 |
2. Process flow
Additive (recycle edge)
↓
Material → melting and extruding → filtering → metering → spinning → quenching → air-flow drawing → web forming → calendaring → winding and slitting
4 Key component

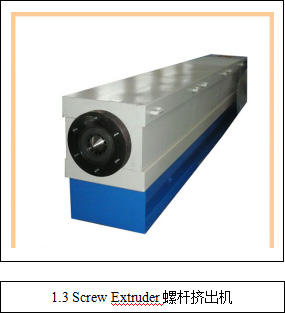

Name:Main Extruder Brand:HHM Original:China Diameter:Φ135mm for 1.6m,Φ170mm for 3.2m,Max speed: 75r/min for 1.6m , 85r/min for 3.2m Motor:90kw for 1.6m , 132kw for 3.2m
Name:FilterBrand:HHMOriginal: ChinaType: Hydraulic or Candle filterFilter precision: 45μm~60μmFitration area: 2.5 m2for 1.6m,3.5 m2 for 3.2m
Heat source : heat-transfer oil , circular heating
Name: Spinning BoxOrificenumber:11019for1.6m17651for3.2mOrificediameter:Φ0.45mmL/D=4:1Max temperature:300℃
Fuction : for spining the PP flament.
| Name | Spinning box |
| Orifice number | 1109 for 1.6 m , 17651 for 3.2 m |
| Orifice diameter | ￠0.45mm L/D 4 : 1 |
| Max temperature | 300℃ |
| Fuction | For spinning the PP flow |
Calandr machine where the yarn is spun to form the rudiments of nonwoven fabric .the calander is very large .
SLitter cutter & Winder machine is used to have made the non woven finished products into the packaging equipment
5 High - accuracy CNC center keep S SS SMS SSMMS non woven making line beyond customer requriement .
6 Shipping and packing
Machine Nude packing , wooden case is optional , case packing , ecletric parts carton box or wooden case packaged , other machines nue packaging wrapping with PE film keep cargo safe.
